IAG Big Bore 76mm Throttle Body Adapter For OEM STI Cosworth & AMS Intake Manifolds

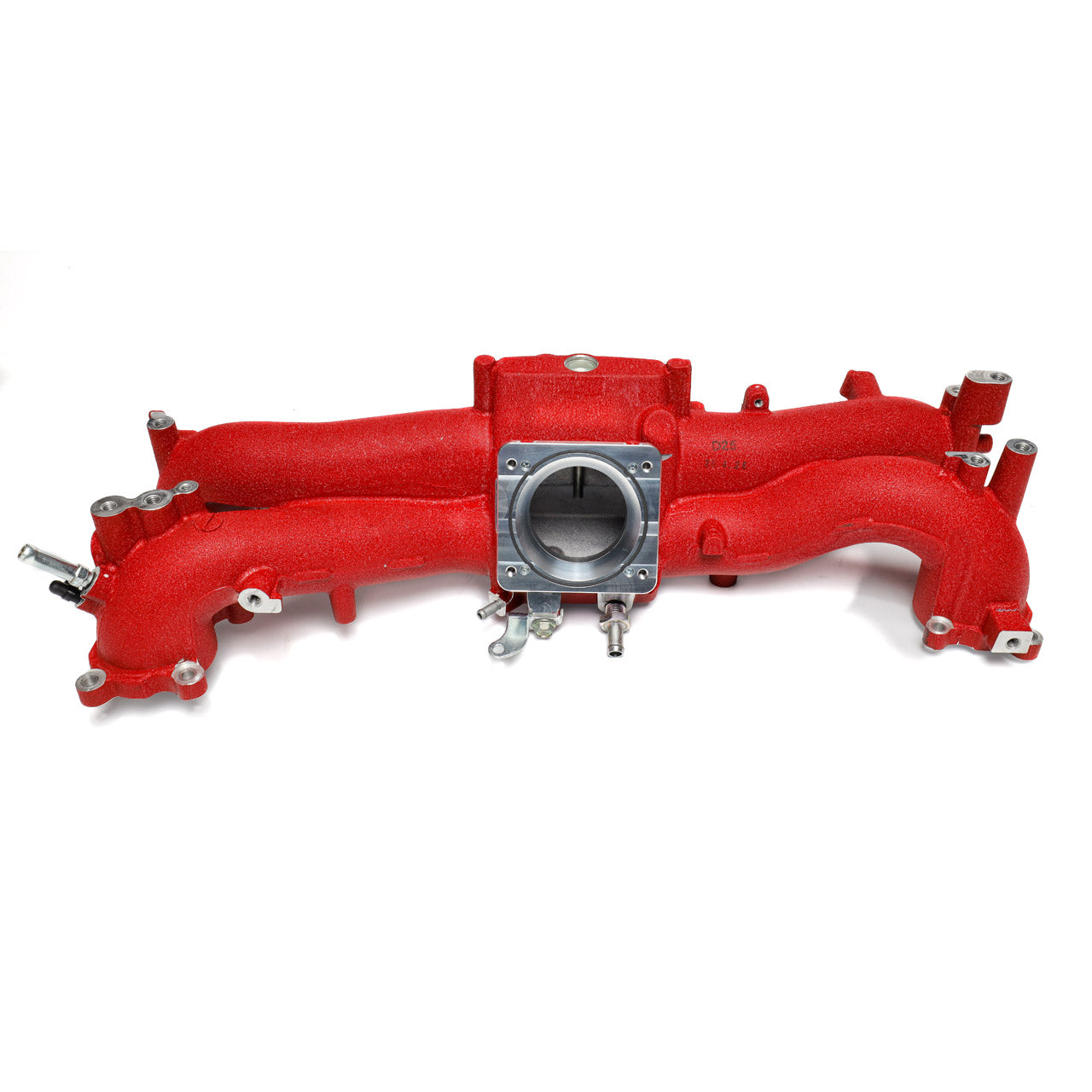

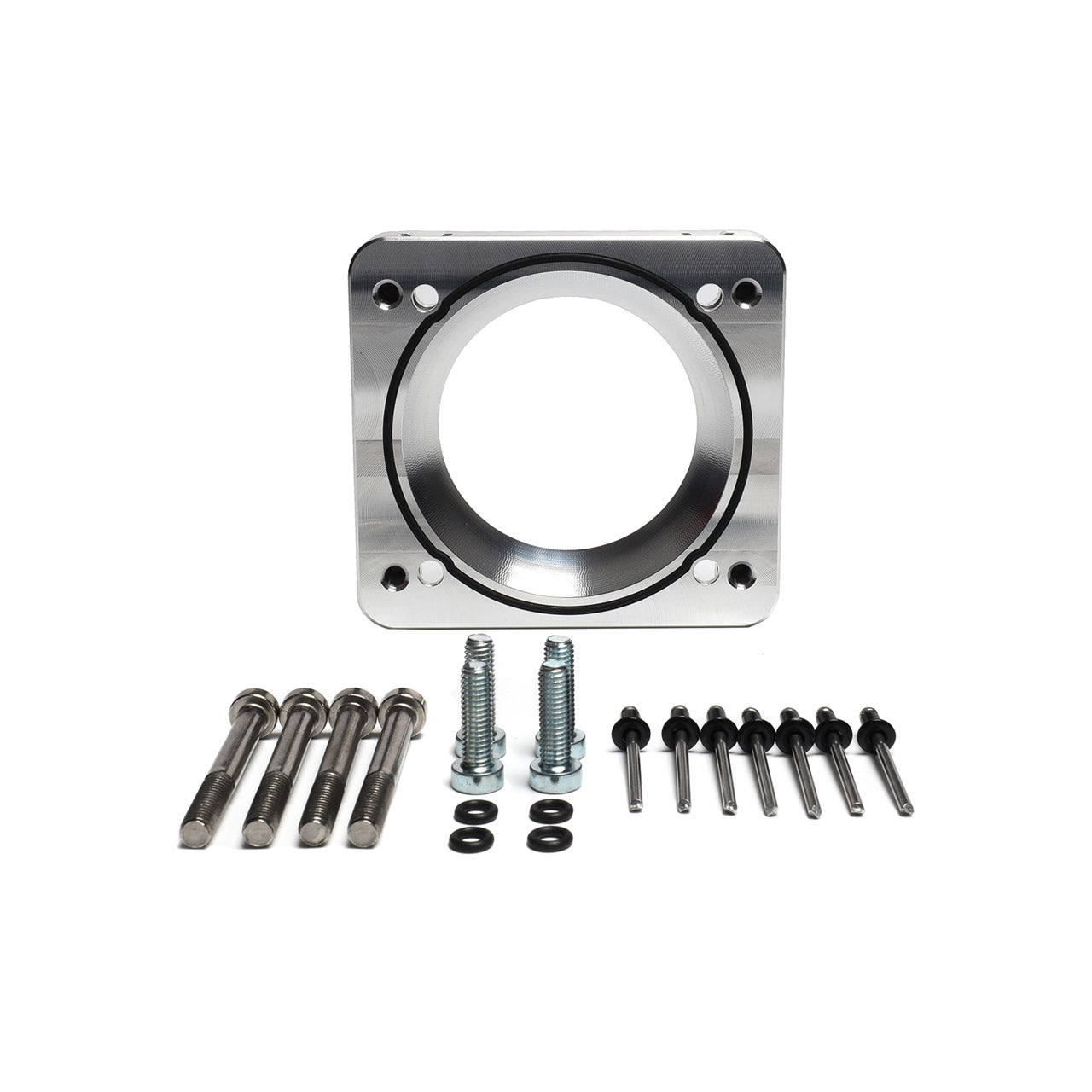

In the hunt for more horsepower Subaru owners can be limited by their OEM throttle body. The OEM units just aren't big enough to meet the demands of larger upgraded turbochargers. For years those who were seeking to upgrade this component were forced to use inferior aftermarket alternatives. These aftermarket throttle bodies were prone to issues like sticking, poor idle quality, and difficult installation. IAG is pleased to announce that these owners are no longer forced to compromise drivability for horsepower. With the introduction of our new adapter plates owners are able to upgrade their OEM throttle bodies with a larger OEM quality unit that is sold separately. The Big Bore throttle body offers a 76mm bore which is nearly 25% larger over stock. Best of all, the installation is much easier than other options previously available. Simply drill out the rivets holding the motor to your OEM Subaru throttle body, remove the motor assembly, and install it to the throttle body using the supplied replacement rivets. No complicated disassembly, no springs, and the OEM connector is plug and play. The IAG adapter plate is designed specifically to work with the OEM STI or Cosworth Intake Manifold. The plates are machined from 6061 aluminum, and feature an O-ring sealing surface. Each adapter plate includes all the necessary hardware to complete the installation. The adapter plates are available in anodized black or natural silver finish.

• Allows mounting of larger 76mm throttle body for increased airflow

Vehicle Specific

• Subaru: Forester 2004 - 2008 Subaru: Impreza 2004 - 2014 Subaru: WRX 2012 - 2016 Subaru: WRX STI 2013 - 2021

Attributes:

• Brand Name: IAG Performance
• GTIN: 00887753780744
• Bore Size: 76 MM
• Color: Silver
• Gasket Or Seal Included: Yes
• Grade Type: Performance
• Hardware Included: Yes
• Material: 6061 Aluminum
• Mounting Hole Quantity: 8
• Port Quantity: 1

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Released

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 9.75 x 5.5 x 5.5 inches
• Weight: 3.1 POUNDS
