IAG EJ Street Series Oil Pan Package (Black Pan / Pickup / Street Baffle / Windage Tray) For WRX STI LGT FXT.

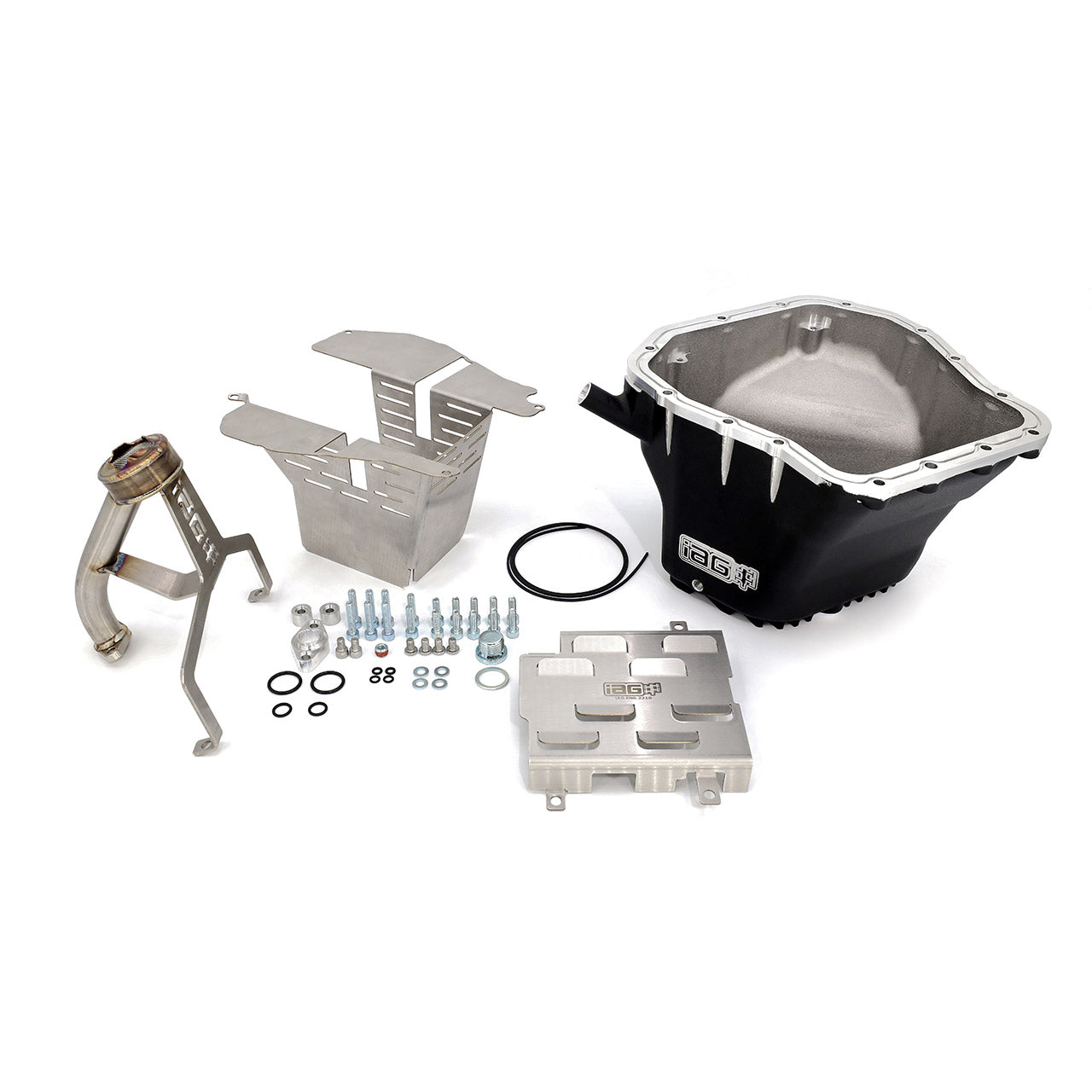

IAG offers our V2 Oil Pickup, Street Series Baffle and Windage Tray combined with our New Oil Pan coated with a black finish as a complete package. About Street Series EJ Oil PanThe IAG Street Series Oil Pan for the Subaru WRX and STI is uniquely designed and CNC machined to suit a wide range of street and track applications. The cast aluminum oil pan was designed with fitment for a larger variety of popular headers in mind, while still increasing oil capacity up to 30% over OEM. The design incorporates cooling fins to aid in dissipating heat from the oil as air passes over them. The included oil drain plug is integrated into the lower cooling fins at the absolute bottom of the pan to make sure all the waste oil is removed during maintenance changes. The oil drain plug uses an OEM style crush washer. The oil pan is also threaded with 1/8th inch NPT port to accept many popular oil temperature sensors. 1/8th inch NPT plug is also included in the event that the sensor port is not used.The upper flange mounting surface is CNC machined for better hardware fitment. The flange features a sealing O-ring for easier installation and removal. The pan is designed to use the included OEM style Viton dipstick o-rings with a unique chamfer to aid in the installation of the dipstick. Internally, the pan includes our integrated, stainless steel, Street Series Oil Baffle that is designed to prevent oil inside the pan from sloshing around and creating cavitation, which can lead to oil starvation. The baffle is engineered to be removable for future upgrades and easy cleaning. About Windage TrayThe job of the windage tray is to help direct oil from the upper crankcase down into the lower crankcase and oil pan area. Manufactured from stainless steel, precision-formed louvers direct oil downwards and help to prevent oil that is draining from the cylinder heads in the lower crankcase area from sloshing upwards into the path of the crankshaft and connecting rods, thus reducing aeration

• Increased capacity and additional cooling fins to reduce oil temps,
• Bottom facing drain plug ensures complete drainage

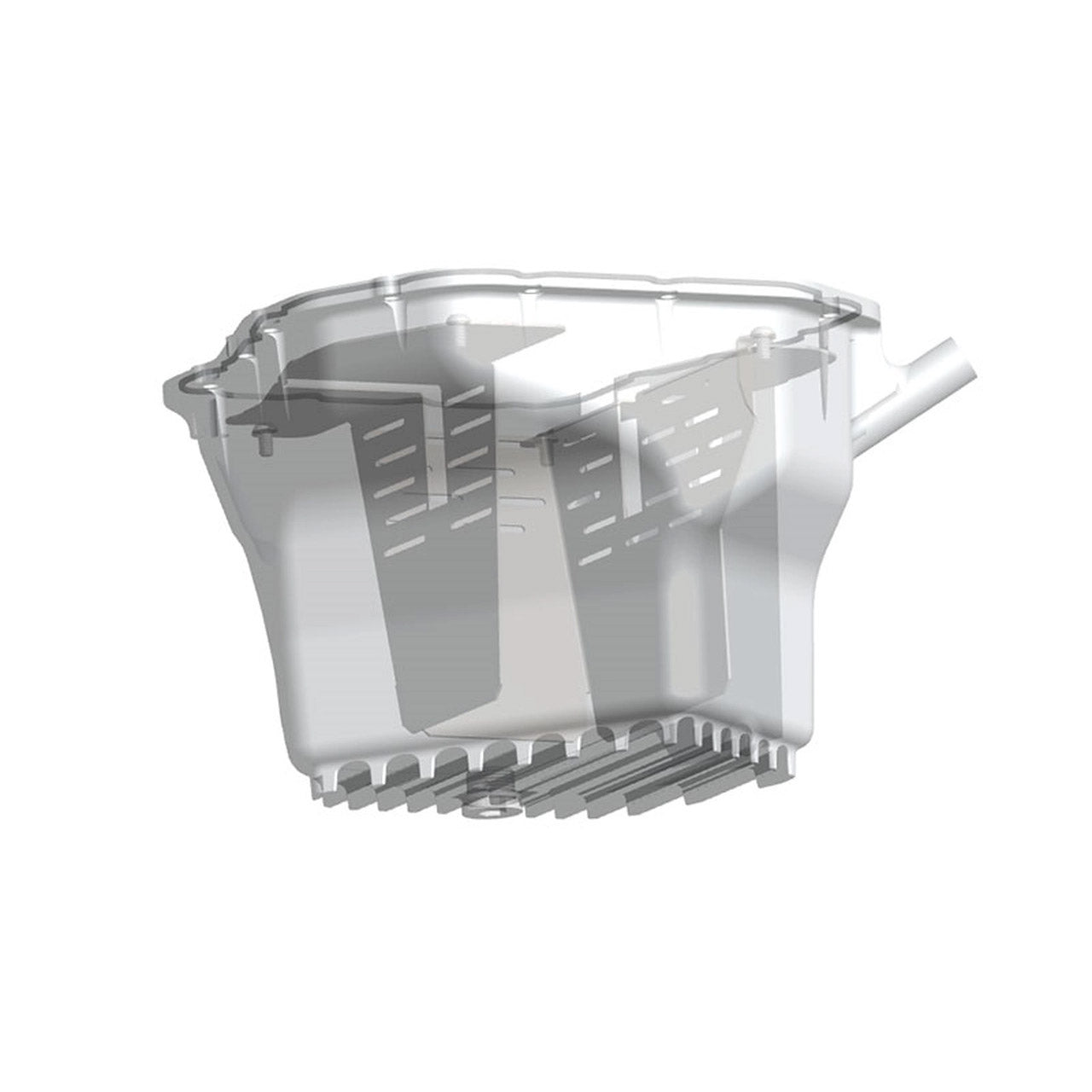

• Internally baffled to ensure oil pickup stays submerged.

Vehicle Specific

• Subaru: Forester 2004 - 2013 Subaru: Impreza 2002 - 2014 Subaru: Legacy 2005 - 2009 Subaru: WRX STI 2015 - 2021

Attributes:

• Brand Name: IAG Performance
• GTIN: 00887753778857
• Baffled: Yes
• Capacity: 5.5
• Color: Black
• Crank Shaft Wiper Included: No
• Dipstick Port: Yes
• Drain Plug Included: Yes
• Drain Thread Diameter: 3.175
• Engine Oil Cooler Return Fitting: No
• Finish: Thermal Dispersant Coating
• Gasket Or Seal Included: Yes
• Grade Type: Performance
• Kick Out Type Pan: No
• Length: 13
• Material: Aluminum
• Mounting Hole Quantity: 20
• Pickup Included: Yes
• Windage Tray Included: Yes

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 13 x 11.5 x 15 inches
• Weight: 11.5 POUNDS
