IAG 600 FA20 DIT Subaru Short Block For 2015-21 WRX - 600 BHP

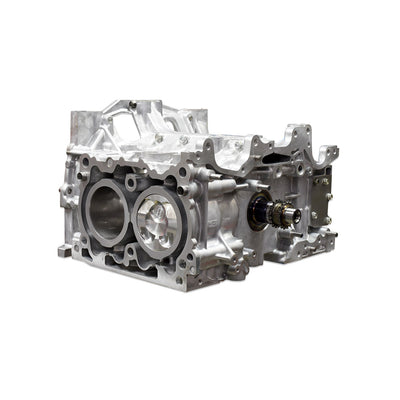

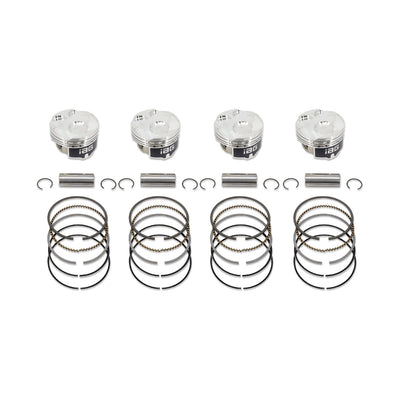

The IAG 600 Short Block is designed for stock or modified FA20 DIT Subaru WRXs that need a stronger bottom end to support increased cylinder pressures created by additional boost pressure. The IAG 600 short block features IAG Spec H-Beam forged connecting rods. The upgraded connecting rods and race bearings are able to support additional engine load produced by larger turbochargers or increased boost which the OEM rods and pistons found in the stock short blocks cannot support reliably. Each IAG 600 Short Block starts with brand new FA20 DIT Subaru 2.0L, 86mm stock bore engine case halves as standard. The case haves are carefully bored and honed to 86.1mm then measured and assembled using a new 2015+ Subaru 2.0L FA20 crankshaft, which is matched to ACL or King race main bearings. The IAG 600 Short Block features IAG Spec H-Beam Connecting Rods with ARP2000 rod bolts, along with ACL or King race rod bearings. The case halves are sealed with new OEM main case bolts and sealant. Finally, IAG Spec JE FSR 86.1mm Forged Pistons are carefully selected, measured, and installed to finish off the short block.

• The IAG 600 Short Block has a power output rating of 600 BHP
• All IAG Short Blocks are balanced and blueprinted
• Compression Ratio: 10.5:1 compression on standard gasket thickness.

Vehicle Specific

• Subaru: Forester 2015 - 2018 Subaru: WRX 2015 - 2021

Attributes:

• Brand Name: IAG Performance
• GTIN: 00887753904232
• Assembled: Yes
• Assembly Lubricant Included: No
• Bore Diameter: 86.1
• Compression Ratio: 10.5:1
• Connecting Rod Beam Style: H Beam
• Connecting Rod Material: T-6 Billet Aluminum
• Cylinder Quantity: 0
• Engine Block Material: Aluminum
• Engine Oil Pump Included: No
• Engine Water Pump Included: No
• Flexplate Included: No
• Flywheel Included: No
• Fuel Type: All
• Grade Type: Performance
• Intake Manifold Included: No
• Oil Pan Included: No
• Piston Material: Forged Aluminum
• Piston Rings Included: Yes
• Piston Style: Dome
• Power Rating: 600 BHP
• Timing Cover Included: No
• Timing Set Included: No
• Valve Covers Included: No
• Windage Tray Included: No
• Wrist Pin Style: Full Floating

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 21 x 17 x 21 inches
• Weight: 100 POUNDS
