Description

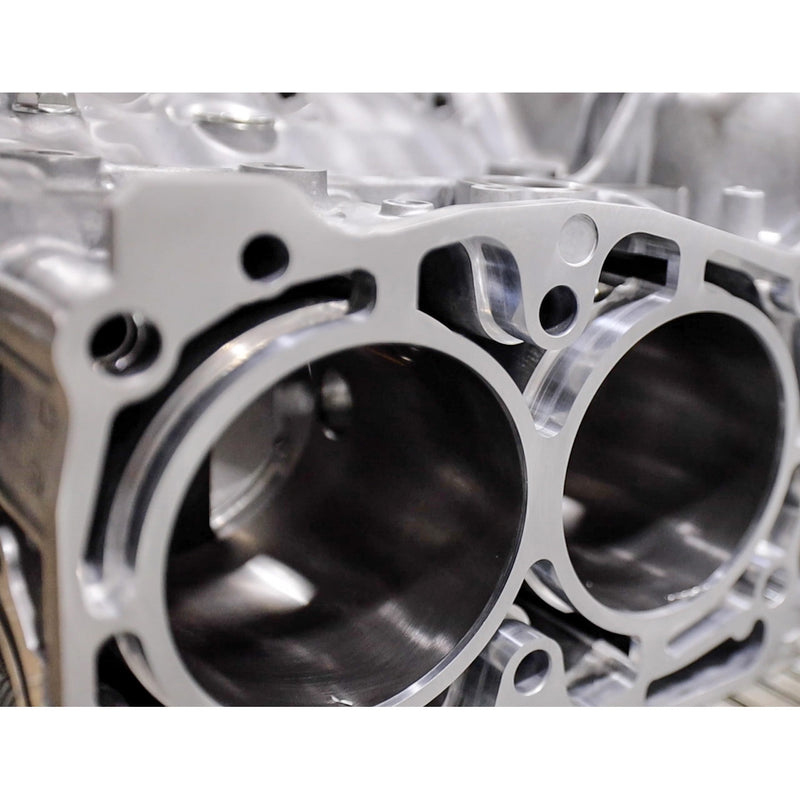

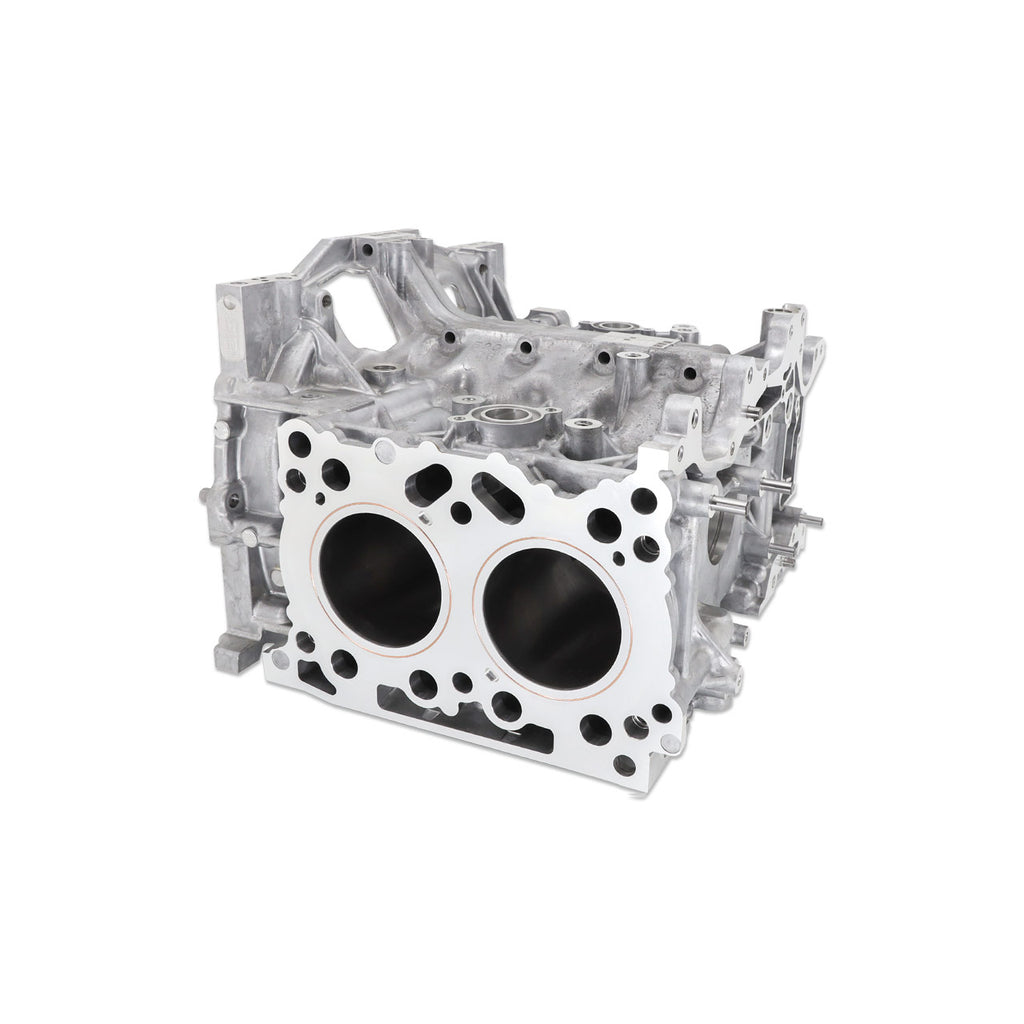

It's no secret that the OEM Subaru case halves, or "block," aren't exactly the strongest. IAG has developed a process to greatly improve the strength of the OEM Subaru FA20 Case Halves to combat the effects of high cylinder pressures brought on by increased power and boost. Our proprietary "Closed Deck" System works by supporting the top of the cylinder in the weakest areas and prevents movement and expansion which can lead to cracks and failures. Despite the additional material supporting the cylinder walls, there is no concerns with overheating or coolant flow because the area around the middle of the cylinder still maintains the same coolant area. The custom IAG closed deck inserts are machined with holes for oil and coolant to pass through the same as stock. Each IAG 800 FA20 DIT WRX Case includes machining for 1/2" head studs and a cylinder gasket "o-ring" groove to aid in head gasket sealing. If you're one of those people who prefer to do your own builds we now offer our legendary closed deck case halves for purchase separately. Simply install your crank, rods, and pistons to your own specifications and be confident that the case halves will take the power and prevent common cylinder wall failures. The IAG Closed Deck conversion is performed 100% in-house by our engineers and experts using state-of-the-art equipment. The IAG Closed Deck starts with a new OEM FA20 bare case. The case is loaded and fixtured to a 4th axis rotary indexer in our Haas VF4-SS CNC Vertical Machining Center. It is supported by the main journals using a precision ground 2-inch bar and tailstock which ensures the datum is the main journals. This method gives us a true reference point to perform all machining operations. A Rennishaw probe is utilized to check that the case is fixtured true, and once confirmed the machining process begins.
- Using brand new FA20 DIT Case / Stock Bore 86mm
- Power: The IAG 800 Closed Deck Case has a power output rating of 800 BHP
- Subaru: WRX 15 - 21 6 Man / Base / CVT / EyeSight / Limited / Premium / Raui Edition / STI / Sport / Sport-tech / Sport-tech RS
Attributes:
- Brand Name: IAG Performance
- GTIN: 00887753904065
- Cylinder Bore Diameter: 86
- Cylinder Wall Configuration: Siamesed
- Fuel Type: All
- Grade Type: Performance
- Hardware Included: Yes
- Length: 21
- Material: Aluminum
- Piston Bore Sleeve Material: Iron
- Power Rating: 800 BHP
- Standard Or Reverse Rotation: Standard
- Width: 17
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 19 x 19 x 16 inches
- Weight: 65 POUNDS
