Description

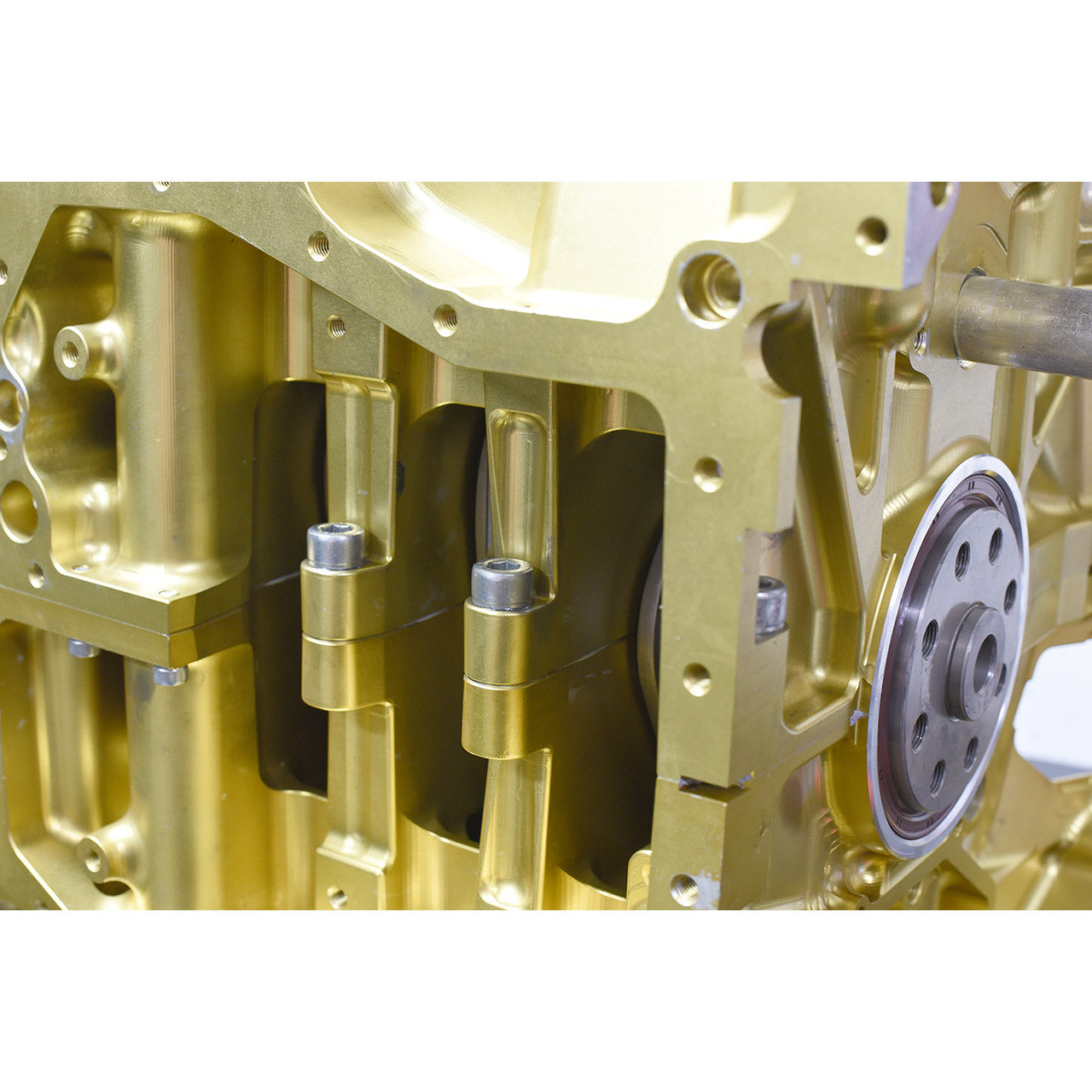

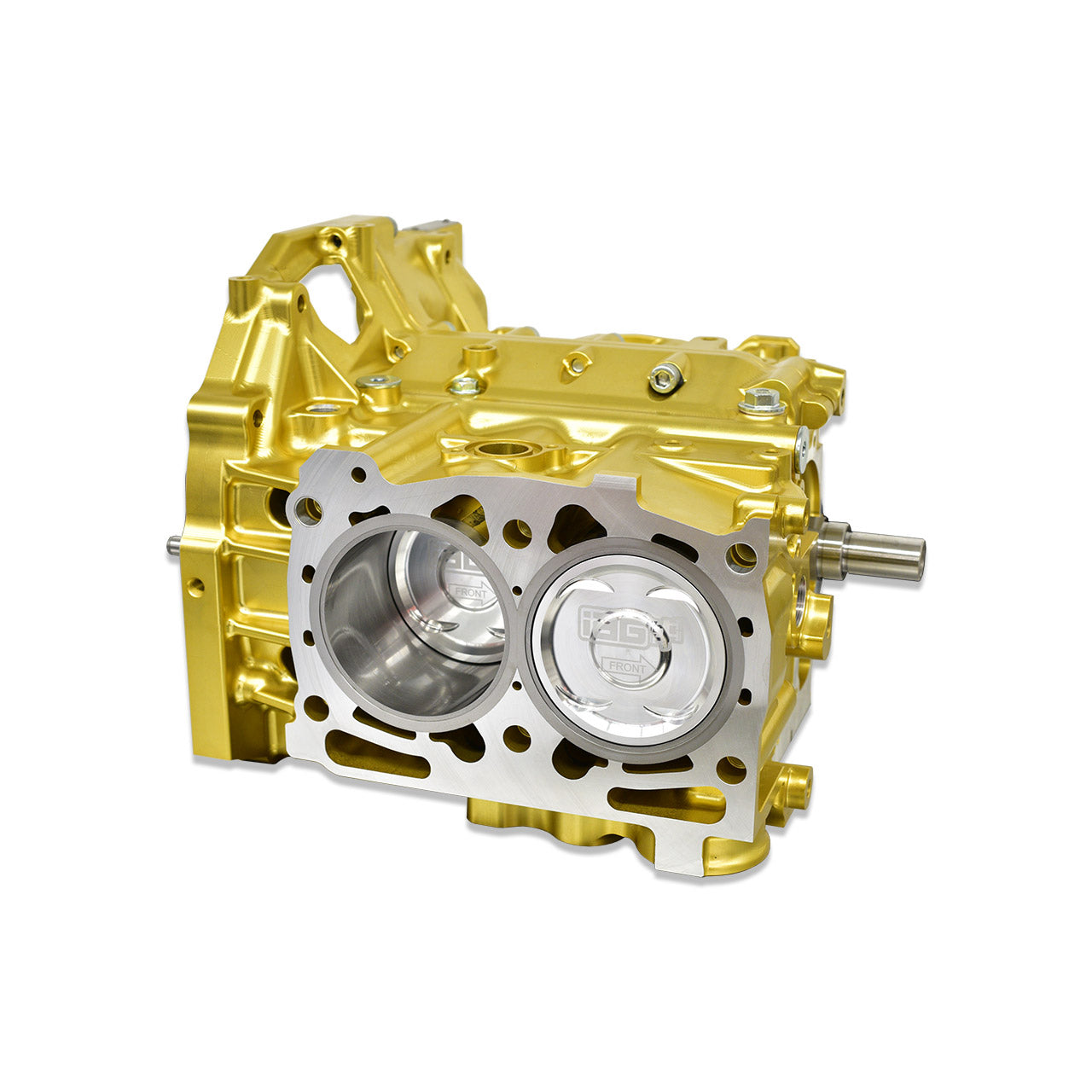

IAG / Crest Stage X Billet Aluminum EJ25 Subarushort Block Using the same world-leading technology found in Willall's incredible billet GT-R block, the billet EJ case seeks to change the Subaru performance tuning market by reinventing the EJ and addressing virtually every weakness that exists in max-power builds. The Stage "X" Block is a complete short block built on the Willall billet platform, which also includes pistons, rods, bearings, crank, bore/hone, case bolts, line hone, and final assembly and blueprinting. Stage X Billet EJ25 Case Features: Machined from solid billet 6061-T6 Aerospace grade aluminum Darton Ductile iron sleeves Increased material thickness in all known weak points (around head studs, bottom end location) Unique 4 bolt bottom end strengthening Threads are rolled into the block rather than conventionally cut for much greater strength Full cooling system operation Radiused coolant and oil galleries for improved flow and less foaming/turbulence Fits all factory engine bay ancillaries (i.e. AC/PS/etc.) Multiple Times stiffer and stronger than the stock case Precision machined for a superior surface finish Hard anodized to avoid marking or straining
- The IAG / Crest Stage X Short Block has a power output rating of 1100+BHP
- All IAG short blocks are balanced and blueprinted.
- Compression Ratio: 8.5:1 on D Cylinder Heads (EJ255) 8.2:1 on B, V and W EJ257 Heads with standard thickness gasket.
- Saab: 9-2X 2005 - 2006 Subaru: Baja 2004 - 2006 Subaru: Forester 2004 - 2013 Subaru: Impreza 2002 - 2014 Subaru: Legacy 2005 - 2012 Subaru: Outback 2005 - 2009 Subaru: WRX 2012 - 2012
- Subaru: WRX STI 2015 - 2021
Attributes:
- Brand Name: IAG Performance
- GTIN: 00887753778178
- Assembled: Yes
- Assembly Lubricant Included: No
- Bore Diameter: 99.75
- Connecting Rod Beam Style: X Beam
- Connecting Rod Material: T-6 Billet Aluminum
- Crankshaft Material: Billet Steel
- Cylinder Quantity: 0
- Engine Block Material: Aluminum
- Engine Oil Pump Included: No
- Engine Water Pump Included: No
- Flexplate Included: No
- Flywheel Included: No
- Fuel Type: All
- Grade Type: Performance
- Intake Manifold Included: No
- Oil Pan Included: No
- Piston Material: Forged Aluminum
- Piston Rings Included: Yes
- Piston Style: Dome
- Timing Cover Included: No
- Timing Set Included: No
- Valve Covers Included: No
- Windage Tray Included: No
- Wrist Pin Style: Full Floating
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Superseded
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 20 x 20 x 20 inches
- Weight: 130 POUNDS
